Regular price $179.00 $0.00 Unit price per
Shipping calculated at checkout.

Ship-Mate

Includes:

  • 1 - Ship-Mate Electronic Semen Shipping Vacuum Flask
  • 10 - Whirl-Pak Collections Bags

Also offered with shipping box and ice

  • 1 - Ship-Mate Electronic Semen Shipping Vacuum Flask
  • 10 - Whirl-Pak Collections Bags

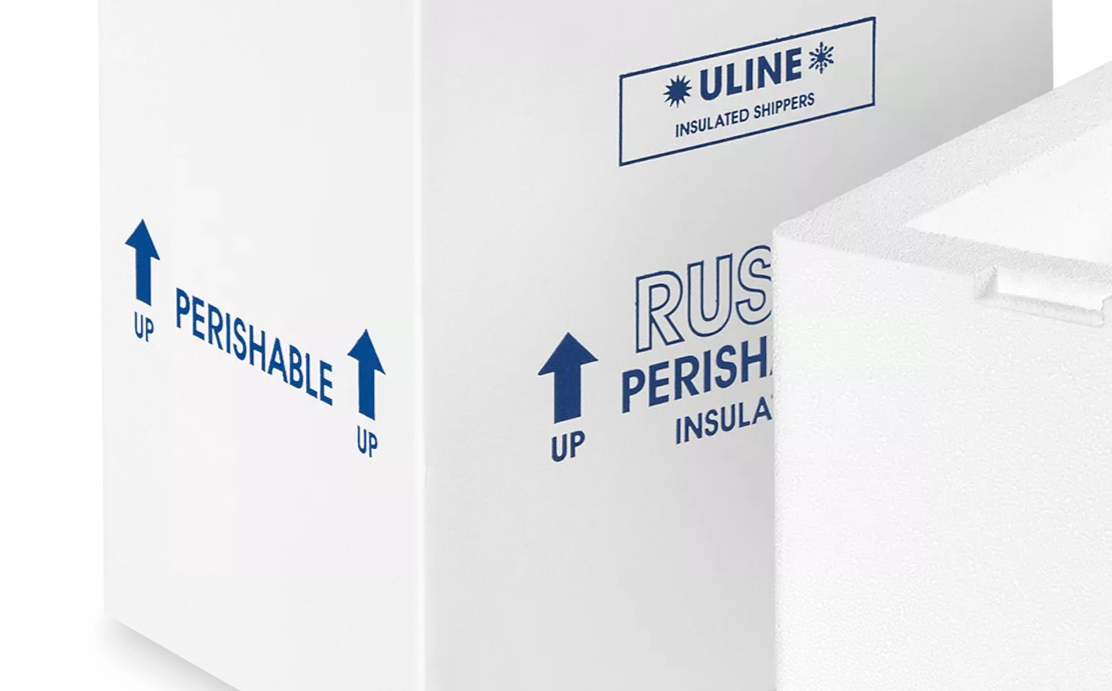

  • 1 - Polar Tech 209C Thermo Chill Insulated Carton (8x6x9)
  • 12 - Chill Gel Ice Packs

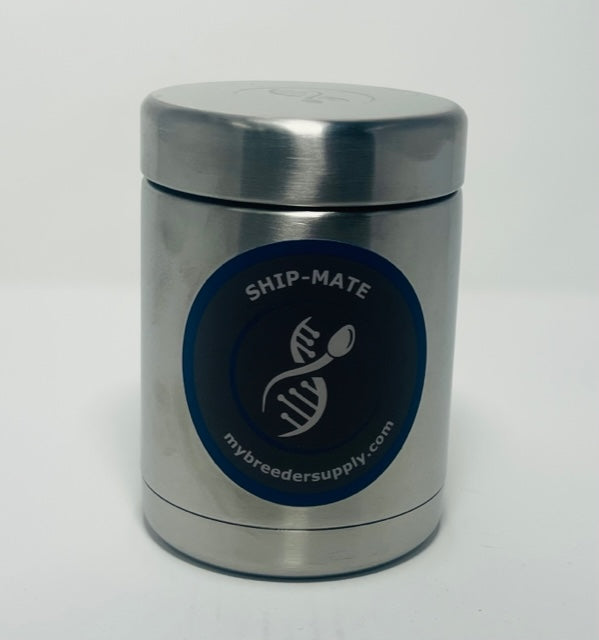

Ship-Mate: Electronic Semen Shipping Flask

Thousands of Consecutive Successful Semen Shipments and Counting

This is a reusable system. Use it over and over, Compared to other systems that do not actively control semen temperature, Ship-mate slowly cools down and holds the temperature at exactly 5°C/41°F. This makes a huge difference in semen viability even on shipments that take up to 3 days. And it is small so overnight and return shipping costs are considerably less.

Developed and manufactured by Innovative Technology Ltd., Elk City, Oklahoma.

The Ship-Mate:

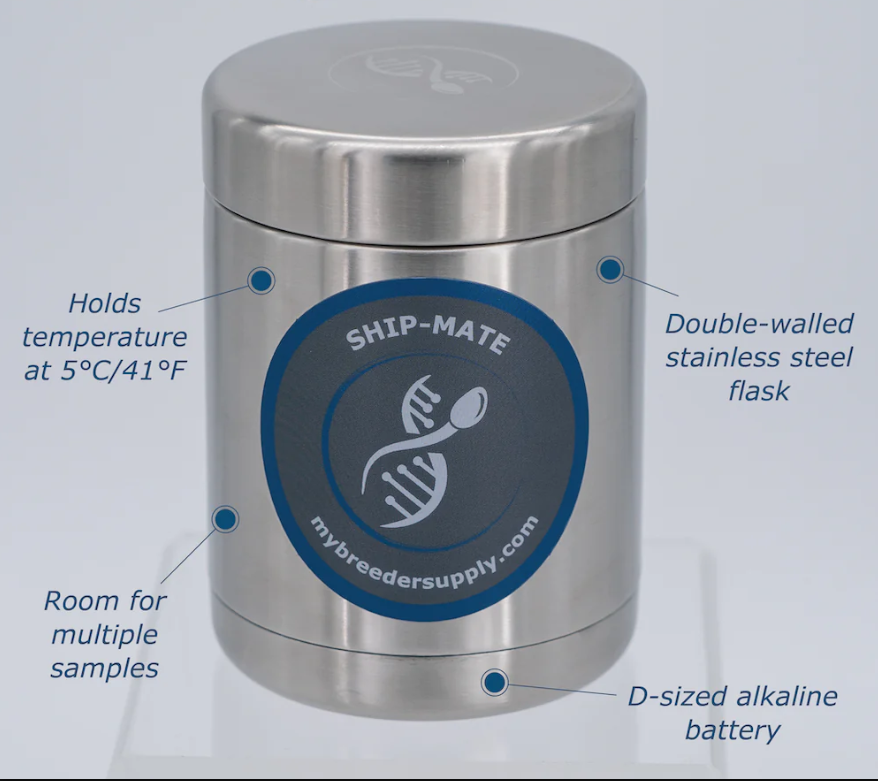

  • Double-walled stainless steel flask. 130mm tall, 90mm in diameter.
  • The flask holds 350ml, enough for lots of whirl Paks if you are shipping multiple samples together

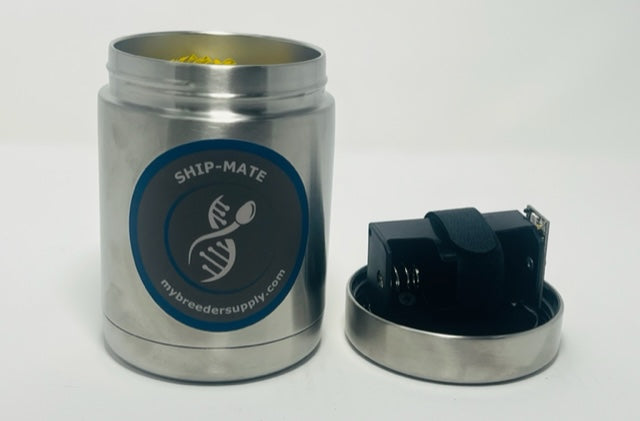

  • Powered by a D-sized alkaline battery.

Ship-Mate will make a huge difference in your ability to ship chilled semen reliably. The traditional method of shipping chilled semen is by using a passive system. Ice packs in the shipping container cool the specimen, but there is no way to control the rate at that the specimen is cooled or the final temperature that it is cooled. The results are inconsistent and unreliable.

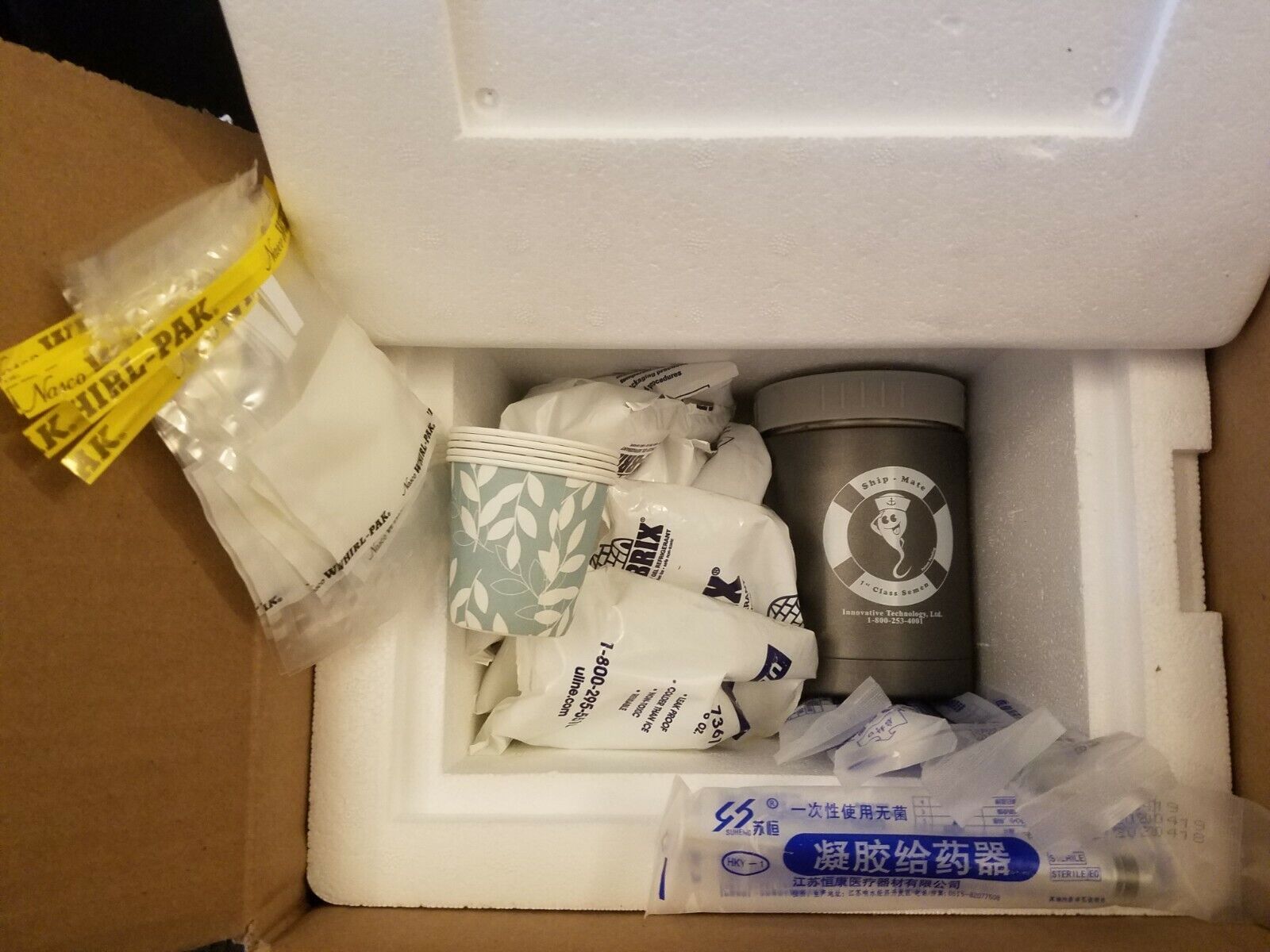

Ship-Mate controls both the cooling rate and final temperature of the specimen. Ship-Mate uses a double-walled stainless steel flask that is surrounded by ice packs inside an insulated foam shipping box. The ice packs alone would damage the specimen by cooling it too fast causing Cold Shock and also potentially freezing the specimen.

A microprocessor, temperature sensor, heater, and memory are the secrets to successfully shipping chilled semen. The specimen temperature is measured and a small amount of heat, added to the flask thereby controlling the cooling to the ideal rate of 0.5 °C / minute until the sample reaches 18 °C. Then the sample is cooled very slowly at a rate of 1 °C every 20 minutes to exactly 5 °C, this slow cooling rate is necessary to prevent Cold Shock. For the remainder of the trip, the sample is held at 5 °C the optimum temperature. It takes about 4.5 hours to properly reach the 5 °C plateau.

The whole process is automated using Ship-Mate, there is no setup required, just load the box with ice packs insert a fresh D-cell alkaline battery and Ship-Mate does the rest. Every minute of the trip is logged and can be downloaded for review. Ship-Mate will log the data for up to 90 hours (more ice and a bigger insulated box would be required for a trip that long).

Ship-Mate UPC: 086636600010

Ship-Mate Patent Pending
